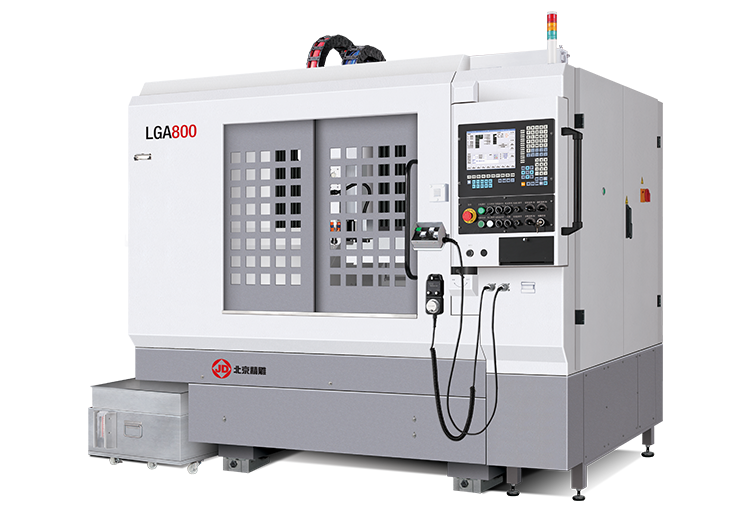

3-axis Machining for Glass Panels and Ceramic

X/Y/Z Travel:33.9/ 24.4/ 10.2 in.

Spindle Speed:20000 rpm

Table Size:32.5 × 24.4 in.

Workload:220.5 lbs.


Optimal Structural Design

The symmetrical and force closed-loop fixed beam portal structure makes the machine high rigidity and stable accuracy

The linear feed axis protection adopts a flexible protective cover, which has better waterproof ability, and can effectively protect the inner guide screw of the coordinate axis and prolong the service life

Equipped with vacuum filtration drainage device, vacuum negative pressure gauge, and vacuum fixture, it can quickly load and unload, and protect the glass panel and vacuum pump

Outstanding Machining Performance

Equipped with self-produced motorized spindle, it has strong anti-vibration ability and can effectively reduce the amount of collapse of the glass contour

The bed and beam adopt vibration-damping technology to ensure the machine tool has good precision retentivity

Equipped with large-flow water pump and annular cooling nozzle, the tool cooling is comprehensive and sufficient, which can effectively extend the tool life

Excellent Human-Machine Interaction

Machine protective cover equipped with automatic door

Optional glass positioning mechanism for easy operation and improving clamping efficiency

This company has a wealth of technical reserves in the field of glass machining, to provide customers with a all-around professional technical support

Example Workpiece

Glass Plate

Ceramics Hole and Slot

Ceramics Disc

Ceramics Plate with Small Hole
